System scaffolding

AFIXFAST X52

Download catalog
Afix fast X52

SYSTEM SCAFFOLDING
AFIXFAST X52

These scaffolding components are produced in high-quality steel
and are extremely suitable for heavily loaded scaffolding constructions
e.g. masonry scaffolding, tower scaffolding, span scaffolding, etc.

Afixfast X52 rosette

PROFESSIONAL
APPLICATIONS

Safety first ... The lives of professionals depend on reliable scaffolding material.
That is why we produce AFIXFAST X52 system scaffolding:

  • stronger
    - high quality steel S355J0H with increased yield strength ≥ 400 N/mm²
    - tube material with 3.2 mm steel wall thickness
  • safer
    - higher load capacity due to rigid beam connection and with 10 mm rosette thickness
    - steel scaffolding decking with a perforated anti-slip surface
  • more durable
    - high corrosion resistance thanks to hot-dip galvanisation
    - self-healing zinc-magnesium coating on steel floors and decks
  • more complete
    - extendable with staircases (towers), stages & stands, accessories, screens, ...
    - usable in demanding sectors such as construction, industry, infrastructure, events, ...
  • certified
    - in accordance with European standards EN 12810/12811 and current regulations
    - certified for activities with weight loads up to class 6

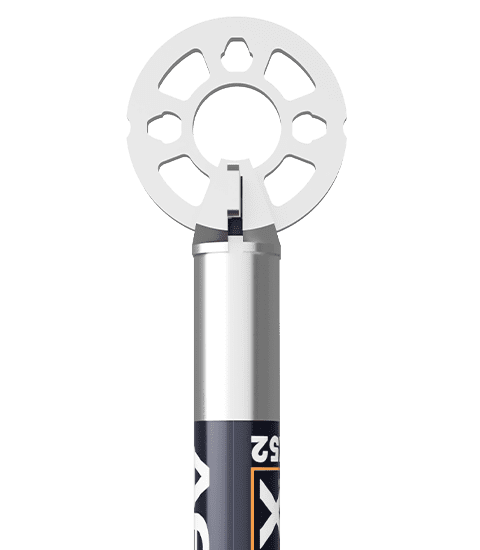

Afixfast X52 rosette ledger

More
performance

Technical specifications make it clear that AFIXFAST X52 offers the highest level of safety:

  • high quality steel - S355JOH with increased yield strength ≥ 400 N/mm²
  • rosette thickness - 10 mm
  • wedge thickness - 6 mm
  • standards, beams, horizontal diagonals - 3.2 mm tubular wall thickness
Afixfast X52 basic scaffolding setup 3X4

STANDARD SYSTEM SCAFFOLDING

Multi-directional AFIXFAST X52 scaffolding is successful because of its simplicity.
A standard basic scaffolding system consists of 8 components:

  1. Adjustable baseplate
    Adjustable foundation for a scaffolding system with a self-cleaning screw threaded stand and adjustable nut.

  2. Collar
    Basic scaffolding element with rosette connecting beams lengthwise and widthwise.

  3. Standard
    Upright component that transfers the weight load on the work platforms to the scaffold base.

  4. Support Ledger
    Horizontal component that connects longitudinal standards.

  5. Diagonal
    Brace that improves stability between vertical or horizontal components.

  6. Deck
    Scaffold platform that supports workers and/or building materials.

  7. Toe board
    Upright barrier at the edge of the platform that prevents people slipping off.

  8. Guard rail
    Horizontal connexion element above the platform at both knee and hip height, serving as fall protection.

One manufacturer two ranges

AFIXFAST system scaffolds guarantee maximum safety at height.
Choose from 2 assortments that can be linked and exchanged.

  • AFIXFAST X52
  • AFIXFAST X37
Know more
Afix fast SPL scaffold deck
